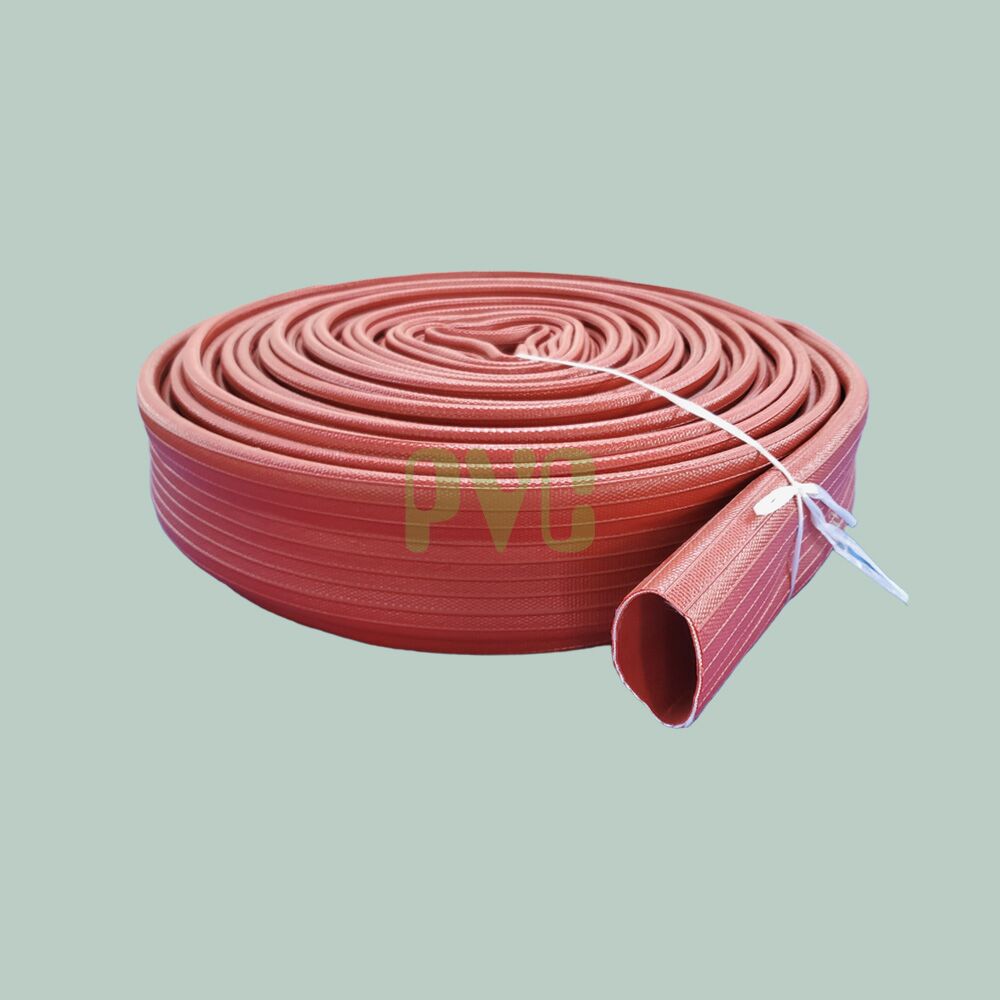

PVC Durable Hose

PVC covered hose/duraline/durable hose

Details About PVC Durable Hose

PVC Durable Hose

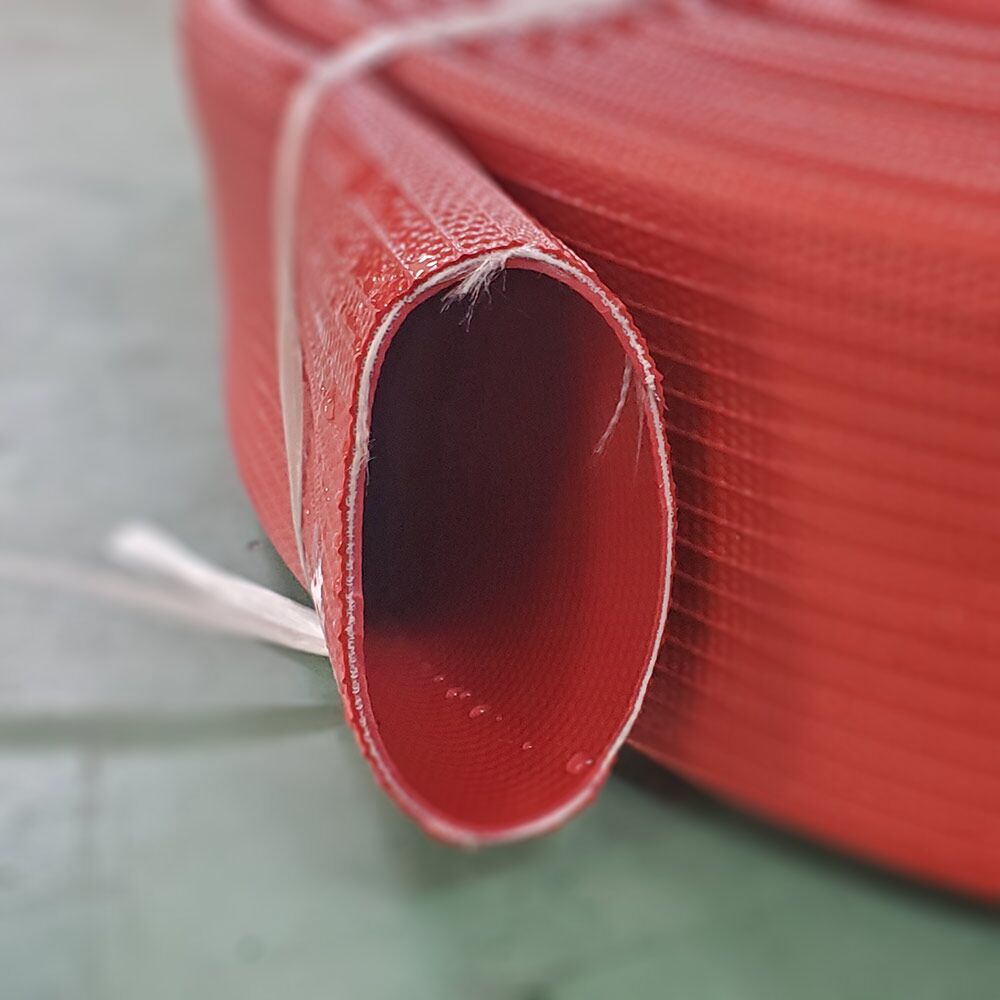

PVC Hose Layout
PVC Hose Layout

PVC liner and cover.

Features

  • An economic choice for dewatering, water delivery, wash down
  • Extremely lightweight and compact, easy to handle and maintain
  • The excellent adhesion strength and low elongation by extruded-thru-the-weave processing
  • Optional ribs along the length improve abrasion resistance on the cover
  • Temperature range from -22°F to 158°F (-30°C to 70°C)
  • Standard length 50’, 100’, 200’, up to 660’
  • Available with customized color, marking, couplings

Standard

  • Within ISO-9001 quality management system

Specification

Nominal Size

Working Pressure Min. Burst Pressure Average Weight

Wall thickness

inch

mm psi bar psi bar Lbs./ft. Kg/m inch mm
1″ 25 150, 200, 250 10, 14, 17 450, 600, 750 30, 42, 51 0.161 0.24 0.005

1.60

1-1/2″

38 150, 200, 250 10, 14, 17 450, 600, 750 30, 42, 51 0.242 0.36 0.007 2.10
1-3/4″ 45 150, 200, 250 10, 14, 17 450, 600, 750 30, 42, 51 0.269 0.40 0.005

1.60

2″

52 150, 200, 250 10, 14, 17 450, 600, 750 30, 42, 51 0.336 0.50 0.007 2.00
2-1/2″ 65 150, 200, 250 10, 14, 17 450, 600, 750 30, 42, 51 0.437 0.65 0.007

2.20

3″

75 200 14 600 42 0.598 0.89 0.007 2.20
4″ 102 150 10 450 30 0.706 1.05 0.008

2.30

5″

127 150 10 450 30 0.827 1.23 0.009 2.60
6″ 152 150 10 450 30 1.008 1.50 0.010

2.90

* Other diameter or pressure on request
