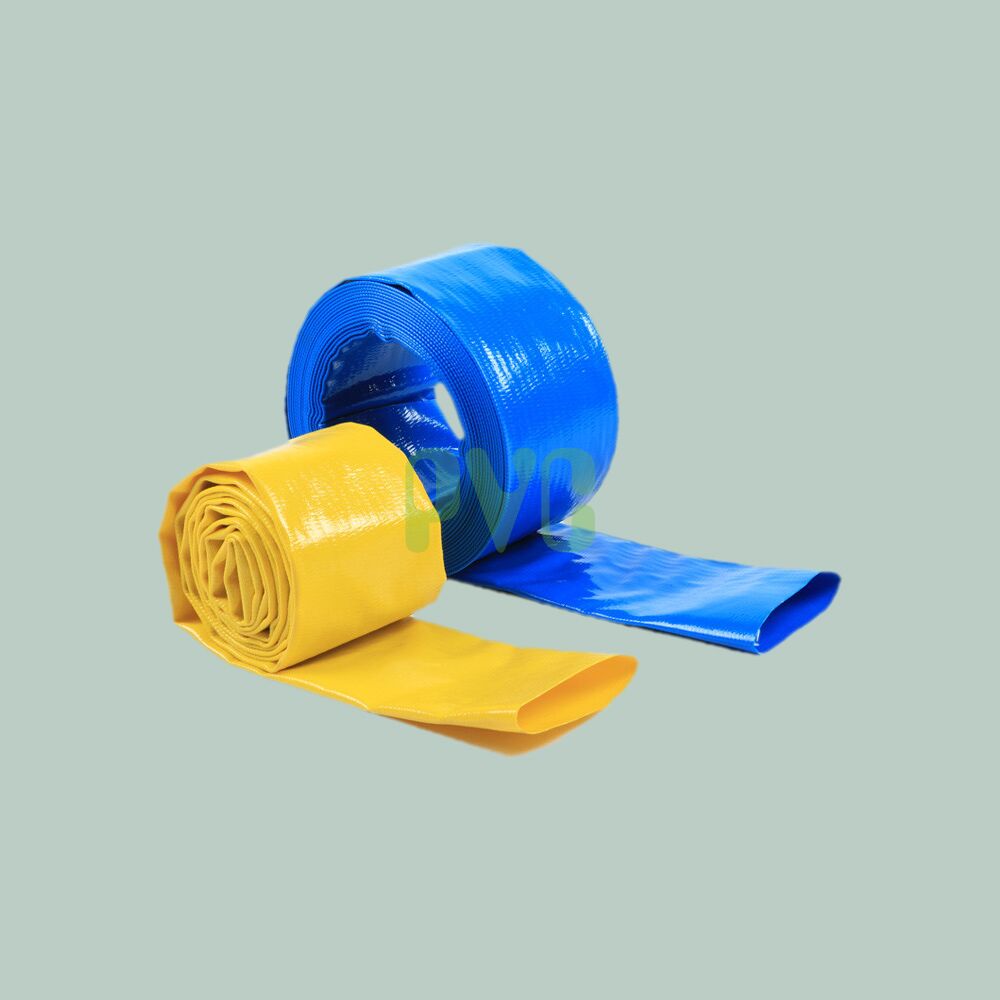

PVC IRRIGATION HOSE
PVC Irrigation Hose is also called the discharge hose which is mainly used for the discharge of water and other liquid or fertilizers. It is made of synthetic fabric and soft PVC. Resistance to chemicals and weather. Lightweight and highly flexible. Easy to store, handle, and take.
Details About PVC IRRIGATION HOSE
PVC Irrigation Hose is also called the discharge hose which is mainly used for the discharge of water and other liquid or fertilizers. It is made of synthetic fabric and soft PVC. Resistance to chemicals and weather. Lightweight and highly flexible. Easy to store, handle, and take.
| Application: | Widely used in agriculture as farm pump hose, irrigation, gardening dripping hose, and another industrial area. |
| Construction: | High tenacity filament polyester or nylon filament as warp and weft, PVC liner inside, and PVC covered outside |
| Inside Lining: | High-quality PVC |
| Color: | Blue as standard, Red, and Green available |
| Temperature: | As low as -10°C to 65°C |

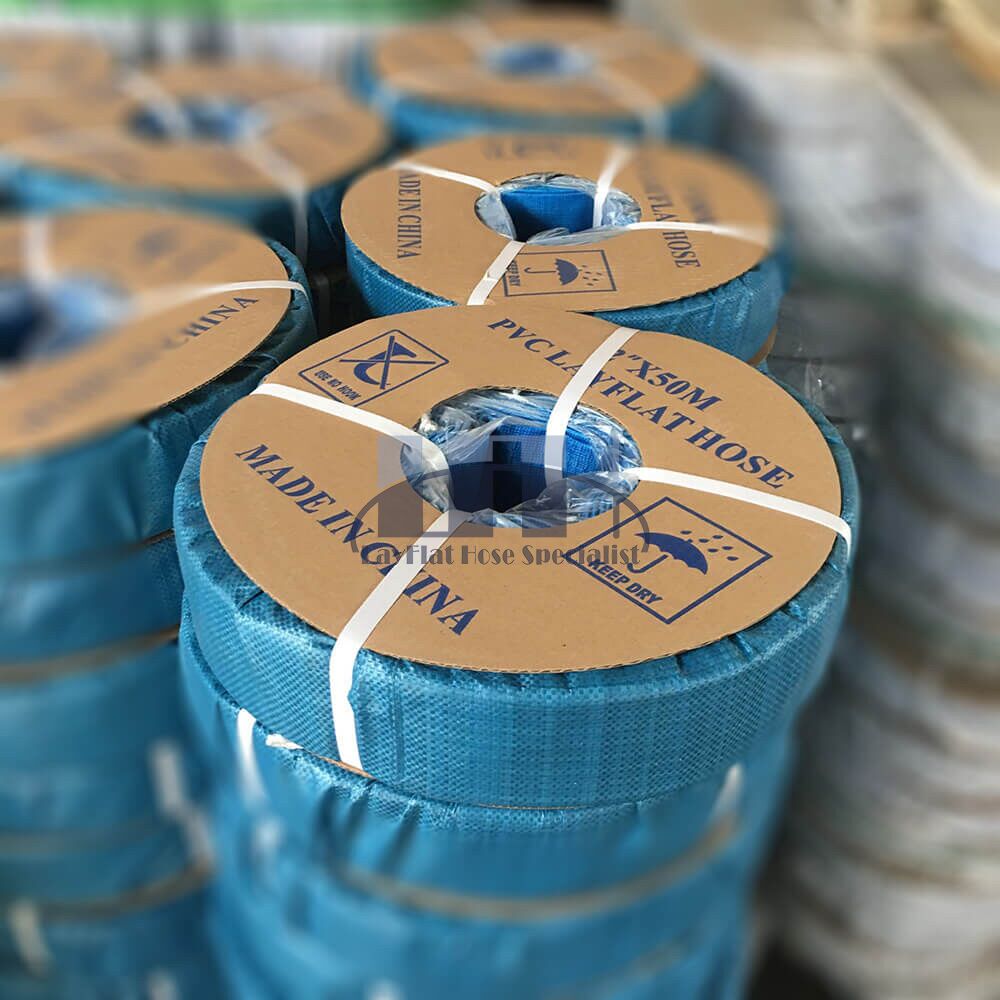

| Packaging: | 20mt, 30mt, 50mt, 100mt as standard lengths |
| Working pressure: | 2bar to 10bar(Light duty, Medium duty, Heavy duty) |
| Ordinary PVC Lay Flat Hose | ||||||
| Size | Inner Dia | Weight | W.P | B.P | Max Length | Volum |
| Inch | MM | KGM | BAR | BAR | Meter | CBM |
| 1″ | 25 | 0.13 | 2! | 6 | 100 | 0.015 |
| 1-1/4″ | 32 | 0.17 | 2 | 6 | 100 | 0.018 |
| 1-1/2″ | 38 | 0.21 | 2 | 6 | 100 | 0.022 |
| 2″ | 50 | 0.28 | 2 | 6 | 100 | 0.028 |
| 2-1/2″ | 64 | 0.36 | 2! | 6 | 100 | 0.035 |
| 3″ | 75 | 0.45 | 2 | 6 | 100 | 0.041 |
| 4″ | 102 | 0.58 | 2 | 6 | 100 | 0.055 |
| 5″ | 127 | 0.67 | 2, | 6 | 100 | 0.071 |
| 6″ | 152 | 0.89 | 2 | 6 | 100 | 0.093 |
| 8″ | 203 | 1.48 | 2 | 6 | 100 | 0.149 |
| 10″ | 254 | 1.95 | 2 | 6 | 100 | 0.241 |
| 12″ | 305 | 2.63. | 2l | 6 | 50 | 0.158 |
| Medium PVC Lay Flat Hose | ||||||
| Size | Inner Dia | Weight | W.P | B.P | Max Length | Volum |
| Inch | MM | KGM | BAR | BAR | Meter | CBM |
| 1″ | 25 | 0.16 | 4 | 12 | 100 | 0.022. |
| 1-1/4″ | 32 | 0.19 | 4 | 12 | 100 | 0.026 |
| 1-1/2″ | 38 | 0.26 | 4 | 12 | 100 | 0.031 |
| 2″ | 50 | 0.38 | 4 | 12 | 100 | 0.039 |
| 2-1/2″ | 64 | 0.46 | 4 | 12 | 100 | 0.051 |
| 3″ | 75 | 0.58 | 4 | 12 | 100 | 0.063 |
| 4″ | 102 | 0.74 | 4 | 12 | 100 | 0.085 |
| 5″ | 127 | 0.93 | 4 | 12 | 100 | 0.108 |
| 6″ | 152 | 1.18 | 4 | 12 | 100 | 0.134 |
| 8″ | 203 | 1.79 | 12 | 100 | 0.185 | |
| 10″ | 254 | 2.68 | 4 | 12 | 100 | 0.36 |
| 12″ | 305 | 3.29 | 4 | 12 | 50 | 0.252 |
| Heavy PVC Lay Flat Hose | ||||||
| Size | Inner Dia | Weight | W.P | B.P | Max Length | Volum |
| Inch | MM | KG/M | BAR | BAR | Meter | CBM |
| 1″ | 25 | 0.25 | 10 | 30 | 100 | 0.028 |
| 1-1/2″ | 38 | 0.38 | 10 | 30 | 100 | 0.04 |
| 2″ | 50 | 0.51 | 10 | 30 | 100 | 0.58 |
| 2-1/2″ | 64 | 0.71 | 10 | 30 | 100 | 0.065 |
| 3″ | 75 | 0.88 | 10 | 30 | 100 | 0.081 |
| 4″ | 102 | 1.19 | 10 | 30 | 100 | 0.108 |
| 5″ | 127 | 1.43 | 10 | 30 | 100 | 0.145 |
| 6″ | 152 | 1.82 | 8 | 24 | 100 | 0.173 |
| 8″ | 203 | 2.43 | 8 | 24 | 100 | 0.246 |
| 10″ | 254 | 2.87 | 6 | 18 | 50 | 0.358 |
| 12″ | 305 | 3.49 | 6 | 18 | 50 | 0.413 |
