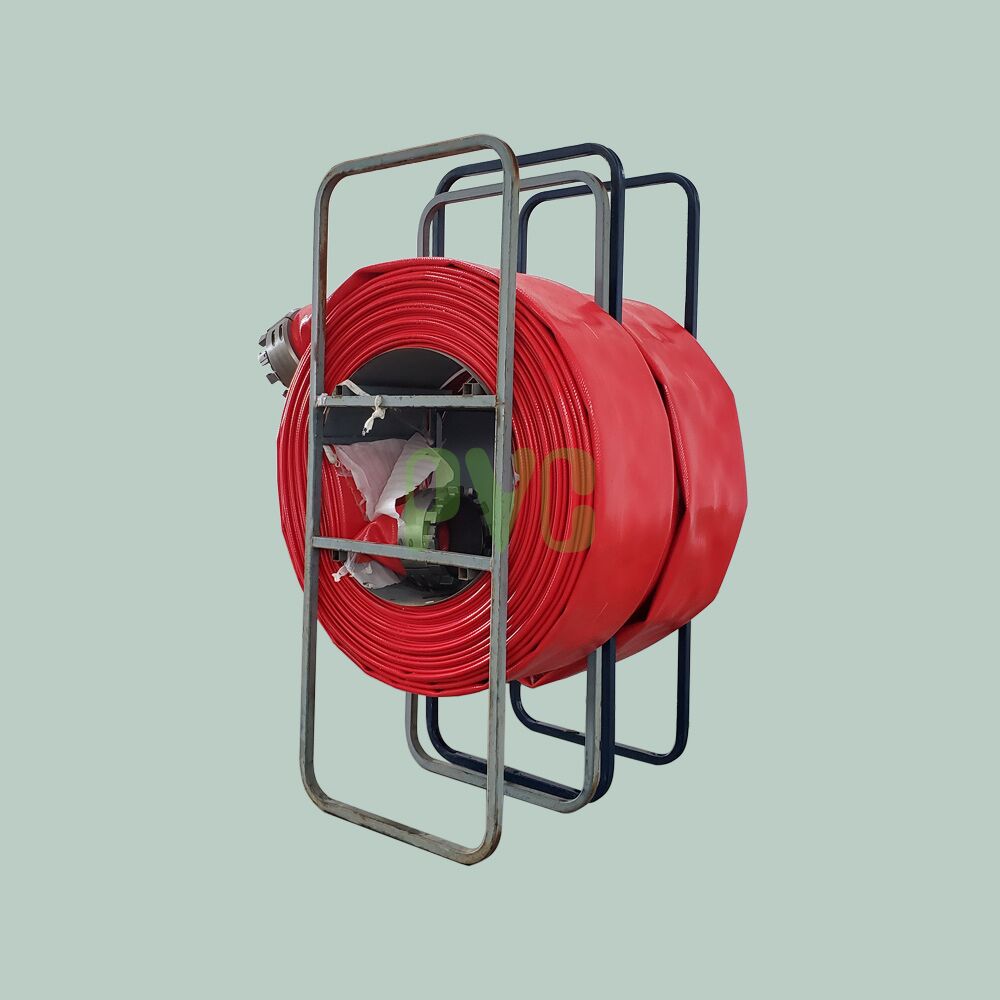

TPU IRRIGATION HOSE
TPU Irrigation Hose is an extruded-through-the-weave hose for water delivery, irrigation, water or slurry discharge, most durable hoses than others.
Details About TPU IRRIGATION HOSE
Features
- High adhesion strength & top fatigue resistance
- TPU liner provides extreme chemical resistance
- TPU cover provides Extreme abrasion resistance
- Outstanding diameter stability
- Lager volume transfer capability of liquid
- Lighter, softer for easy deployments
- Temperature range from -58°F to 158°F (-50°C to 70°C)
Technical Data
| Nominal Size | Working Pressure | Burst Pressure | Weight | Wall Thickness | Tensile Strength | ||||||
| inch | mm | psi | bar | psi | bar | Lbs./ft. | Kg/m | inch | mm | Lbs. | Kg |
| 4″ | 102 | 250 | 17 | 750 | 51 | 0.56 | 0.84 | 0.094 2.4 | 32640 | 16320 | |
| 5″ | 127 | 225 | 15 | 675 | 47 | 0.74 | 1.11 | 0.10 | 2.5 | 35400 | 17700 |
| 5-1/2″ | 140 | 225 | 15 | 675 | 47 | 0.83 | 1.24 | 0.102 2.6 | 42570 | 19350 | |
| 6″ | 152 | 225 | 15 | 675 | 47 | 0.92 | 1.37 | 0.102 2.6 | 46200 | 21000 | |
| 8″ | 200 | 150 | 10 | 450 | 30 | 1.63 | 2.45 | 0.122 3.1 | 42240 | 19200 | |
| 10″ | 254 | 150 | 10 | 450 | 30 | 2.90 | 4.35 | 0.157 4.0 | 56540 | 25700 | |
