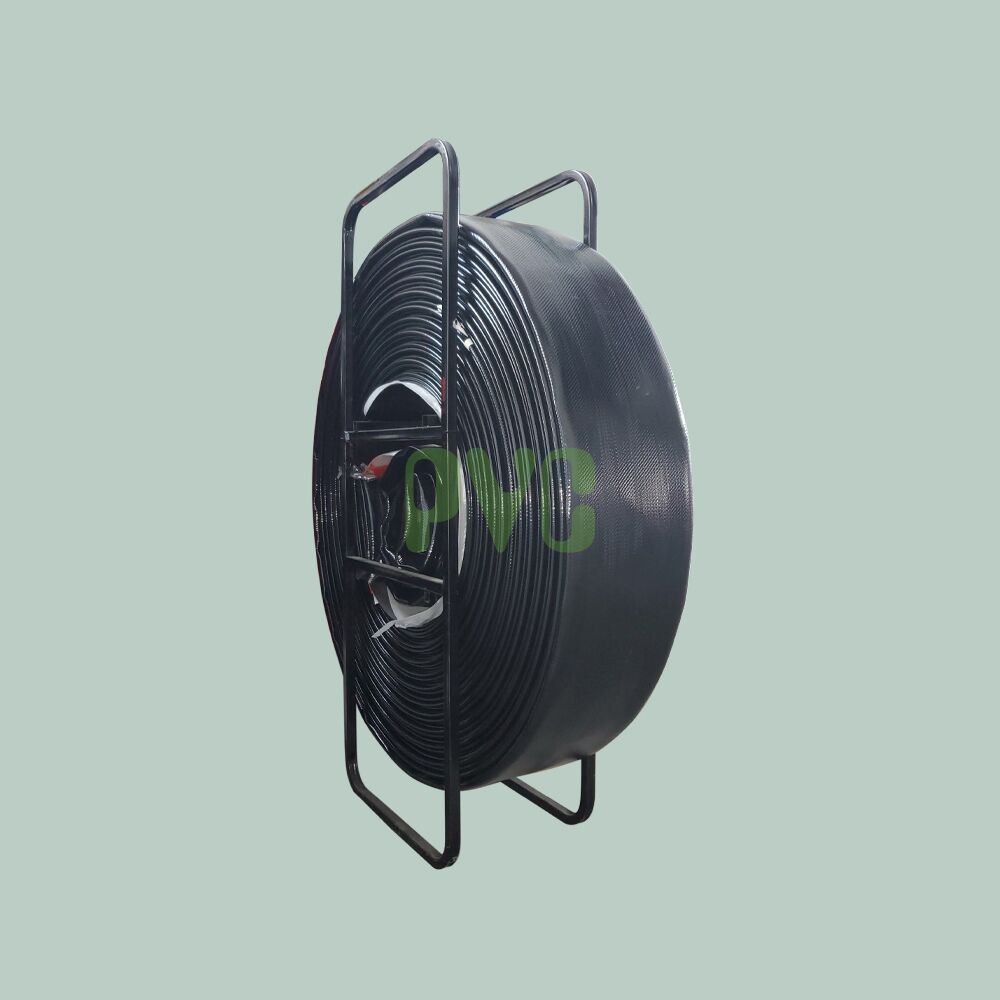

TPU OIL FRAC HOSE
TPU Extruded Through The Weave Oil frac hose for Long Distance Fracking Water Transfer.
Details About TPU OIL FRAC HOSE
Features
- Extreme abrasion resistance
- Lager volume transfer capability of liquid
- Lighter, softer for easy deployments
- Temperature range from -58°F to 158°F (-40°C to 70°C)
Technical Data
|
Nominal Size
(inch/mm)
|
Working Pressure
(bar)
|
Burst Pressure
(bar)
|
Weight
(g/m)
|
Thickness
(mm)
|
Tensile Strength(kg) | Bend Radius (mm) | |
| 1-1/2″ | 38 | 28 | 84 | 400 | 2.5 | 2250 | 700 |
| 1-3/4″ | 45 | 28 | 84 | 420 | 2.7 | 3000 | 900 |
| 2″ | 52 | 28 | 84 | 450 | 2.8 | 3250 | 1100 |
| 2-1/2″ | 65 | 28 | 84 | 710 | 3 | 3500 | 1300 |
| 3″ | 75 | 14 | 42 | 1000 | 3.3 | 4500 | 1450 |
| 4″ | 102 | 14 | 42 | 1390 | 3.6 | 6000 | 1700 |
| 5″ | 125 | 14 | 42 | 1500 | 3.8 | 10500 | 2100 |
| 6″ | 152 | 14 | 42 | 2100 | 3.9 | 12500 | 2250 |
| 8″ | 203 | 14 | 42 | 2980 | 4 | 16500 | 3000 |
Application
- Irrigation and fertilization for the drag system.
- Industrial construction.
- Wastewater discharge.
More Available
- Customized marking
- Binding with international couplings available
- Other diameters available
- Red, yellow, other colors on request
- Length up to 660ft/200m
