TPU WELL PIPE

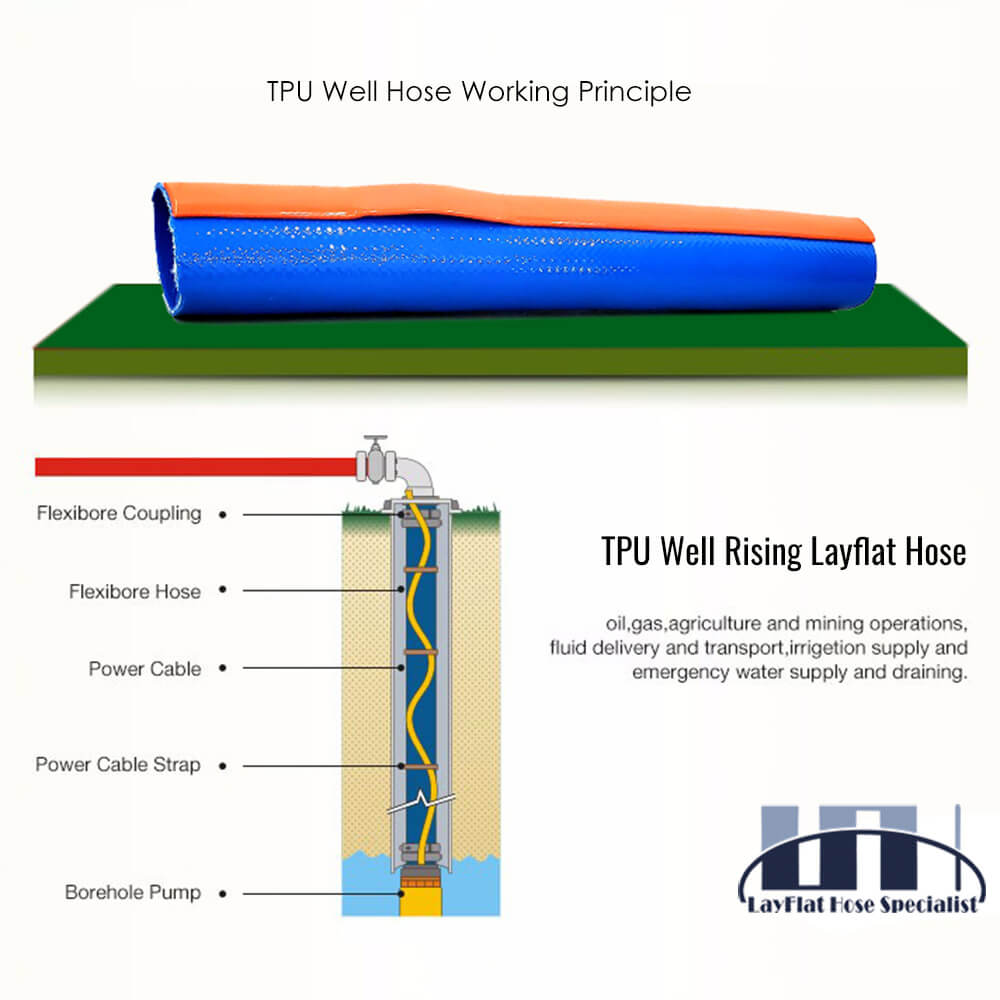

One-step extrusion through the weave TPU liner and cover lay flat hose for well-rising application with excellent wear & tear properties.
Details About TPU WELL PIPE

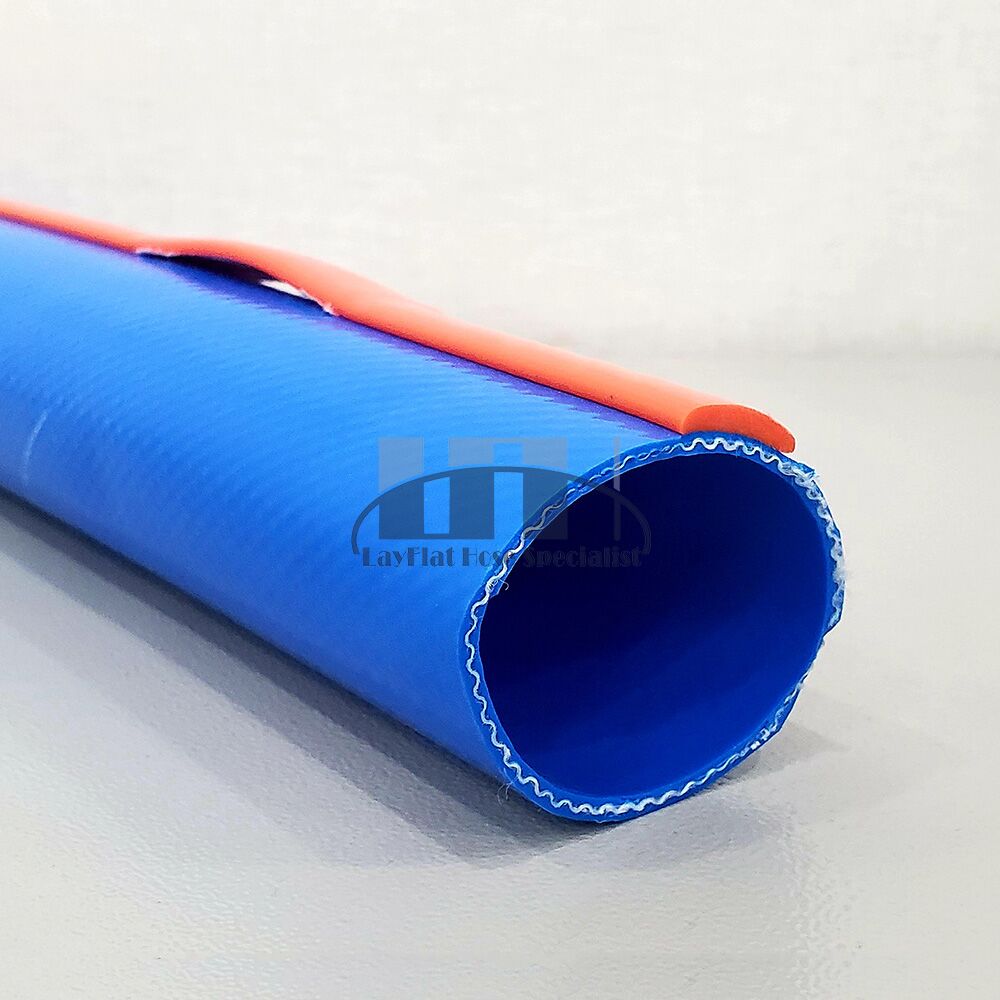

TPU Well Pipe

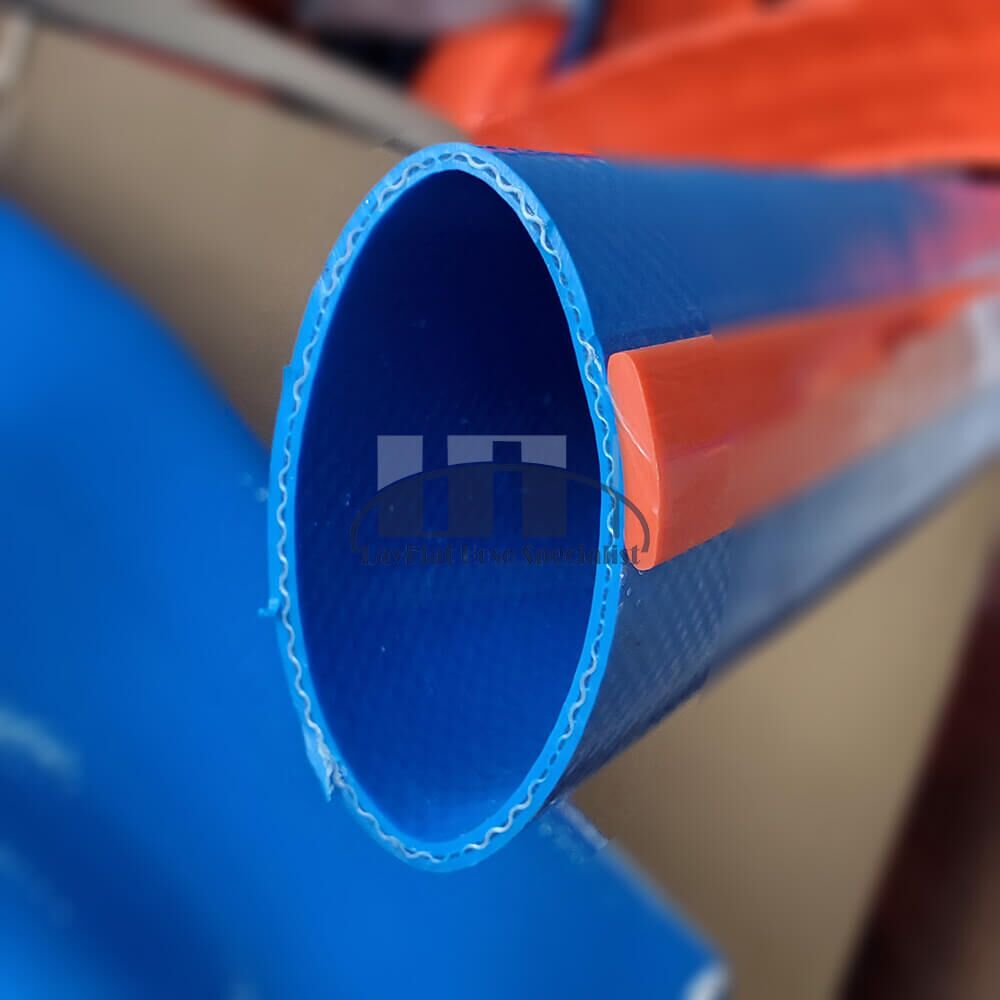

TPU Cover and Liner, TPU Cable Strap
Features
- Quick and easy installation and retrieval
- No internal scaling
- Totally corrosion resistance
- Reduced head losses and improved flow rates due to swelling under pressure
- Less labor-intensive due to ease of installation
- Reduced transport costs due to lightweight and easy handling
- Adapted to the hygienic demand for drinking water in different countries
- All hydrostatically tested
- Temperature range from -4°F to 140°F (-20°C to 60°C)
Standards
- NSF/ANSI 61 approved
Specification
| Nominal Size |
Max. Operating Pressure |
Burst Pressure | Max. Tensile Load | Max. Recommended Tensile Load | Weight | Max. Flow Capacity | Axial Elongation |
O.D. Expansion Ratio |
|
| inch | mm | bar | bar | ton | ton | kg/m | l/sec | ||
| 1-1/2″ | 40 | 25 | 50 | 2.5 | 1.3 | 0.3-0.4 | 4 |
≤2% |
≤4% |
| 2″ | 50 | 38 | 76 | 3.6 | 1.8 | 0.5-0.7 | 6 | ||
| 3″ | 75 | 38 | 76 | 8.8 | 4.4 | 0.9-1.1 | 18 | ||
| 4″ | 100 | 34 | 68 | 11 | 5.5 | 1.4-1.6 | 40 | ||
| 5″ | 125 | 34 | 68 | 15 | 7.5 | 2.0-2.3 | 55 | ||
| 6″ | 150 | 32 | 64 | 17 | 8.5 | 2.3-2.6 | 90 | ||
| 8″ | 200 | 30 | 60 | 24 | 12 | 3.3-3.6 | 148 | ||
